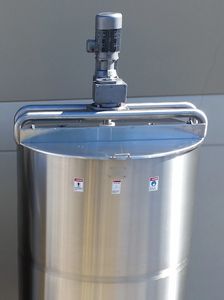

Our process tanks are designed to meet the individual customer requirements. The 1800 gallon tanks shown here are for tomato sauce mixing & flavoring application. These tanks also feature Maker's Scrape Surface Agitation.
Key feature's:
~Three triple blade impellers
~Scrape surface blades
~Shaft steady bearing
~Anti-Vortex baffles
Options:
~Material: T304SS or T316SS
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only, Ground Smooth or Ground & Polished

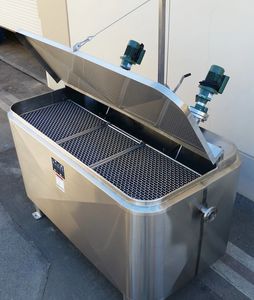

The tank shown here is for animal fat melting & flavoring application. The grating serves dual purposes as it allows powder seasonings to be sifted thru, secondly it is a safety guard to protect personnel from placing their hands into the rotating mixing blades or from falling into the tank. Horizontal tanks can be built cylindrical or rectangular as shown.
Key feature's:
~Dual mixers for consistent mixing
~Dual purpose grating for sifting & safety
~ Internal steam coil
~Internal nitrogen injection manifold
~Stainless steal cladding with fiberglass insulation
~Hinged lid with manual lift assist wench
Options:
~Material: T304SS or T316SS
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only, Ground Smooth or Ground & Polished

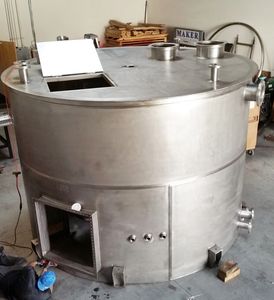

The 6500 gallon tank shown here is for boron mineral processing application. The steam coil supports not only hold the coil in its place they also serve as anti-vortex baffles. This tank features a flat top & a flat bottom which is sloped to the outlet.
Key feature's:
~Internal steam coil
~Anti-Vortex baffles
~Top & side entry manways
Options:
~Material: T304SS or T316SS
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only, Ground Smooth or Ground & Polished

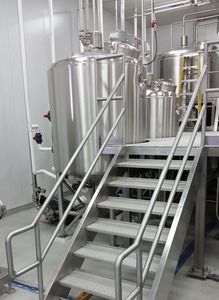

From design to engineering, fabrication to installation, Maker is fully capable to handle your next project such as this multi-level platform. All of the design is per O.S.H.A. guidelines and all of the engineering is per California building code. Due to logistical constraints, sub-components of large scale platforms are normally pre-fabricated at Maker's facility. The sub-components are then erected onsite and welded together.
Key feature's:
~Designed Per O.S.H.A. Regulations
~Engineered Per California Building Code
Options:
~Material: T304SS, T316SS, Aluminum, Carbon Steel
~Material Finishes: 2B Finish, #4 Finish, Paint or Epoxy
~Weld Finish: "As-Deposited" Buffed Only or Ground Smooth
High quality portable 5 liter, 8 liter & 20 liter Vessels.
Key feature's:
~Mirror Finish & Electro Polished
Options:
~Material: T304SS or T316SS
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only or Ground & Polished

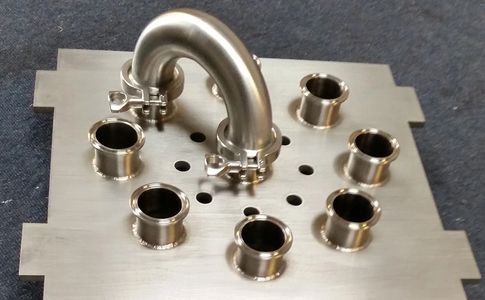

Flow panels are custom built to accommodate piping requirements.
Key feature's:
~Panel plates are cut by water jet to hold tight tolerances.
Options:
~Material: T304SS or T316SS
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only or Ground & Polished
Pipe assemblies can be shop fabricated or field fabricated.
Key feature's:
~Built to customers requirements.
Options:
~Material: T304SS, T316SS or Carbon Steel
~Material Finishes: 2B Finish, #4 Finish or Mirror Finish
~Weld Finish: "As-Deposited" Buffed Only or Ground & Polished
~Passivation or Electro-Polish
